Ignition Controls Mini EX Button Box

The all new range of smaller form factor button boxes from Ignition Controls deliver the same quality components and all metal enclosures, but with a smaller form factor to suit a wider range of use cases in your sim setup.

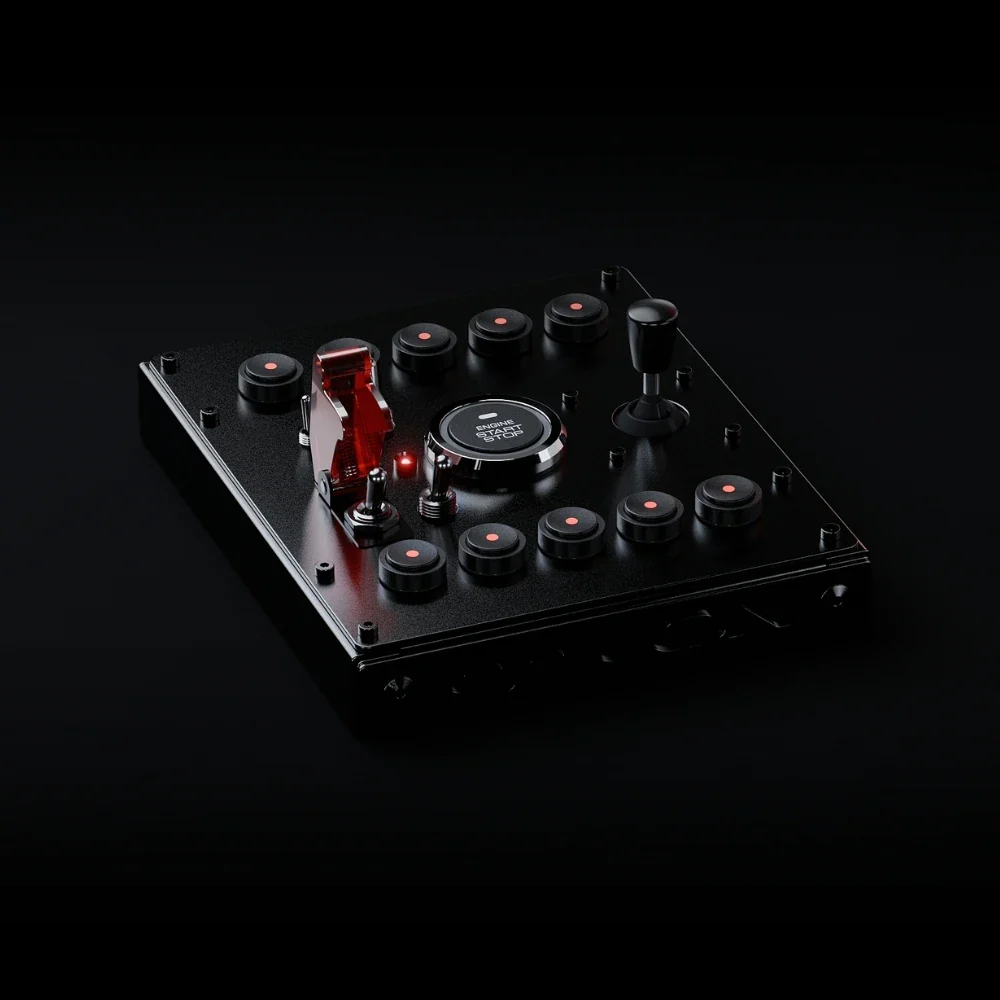

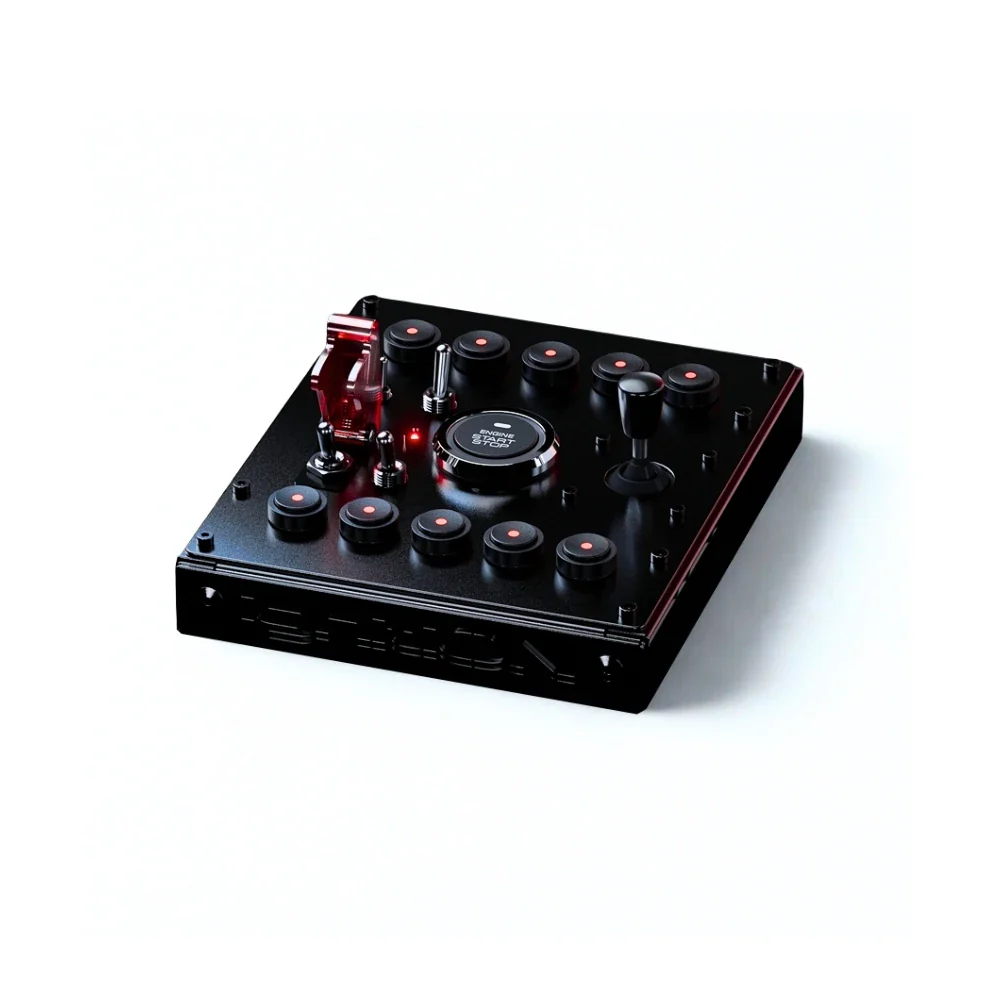

The Mini EX model is characterised by the 10x mini mechanical buttons with red LED dots.

Built from professional grade components, Ignition Controls boxes redefine quality and style.

Upgrade your simulation experience today.

Features

• Premium quality mechanical buttons with Red LED dots. Concave surface, deep press, defined mechanical feel.
• Smaller and lower profile enclosure with VESA 75 x 75 mm built-in M4 threaded inserts.
• 18 inputs.

Specifications

• Premium quality mechanical buttons with Red LED dots. Concave surface, deep press, defined mechanical feel. -10pcs
• Non-momentary (no spring return) mini toggle -LED power switch
• Non-momentary (no spring return) OFF-ON toggle paired with blinking LED indicator below -may require custom in-game assignment, or external software for proper operation - SVMapper/ Joy2Key / AutoHotKey...
• Momentary (spring return) OFF-(ON) toggle with safety cover
• Momentary (spring return) (ON)-OFF-(ON) two-way toggle
• Large "Engine Start" button (non-backlit)
• Four-way Joystick Switch (4 momentary inputs) -this is not analog joystick!
  Powder Coated, All-Metal Enclosure with 4 built-in M4 threads (VESA 75x75mm centered on the backside) for direct hard mounting.

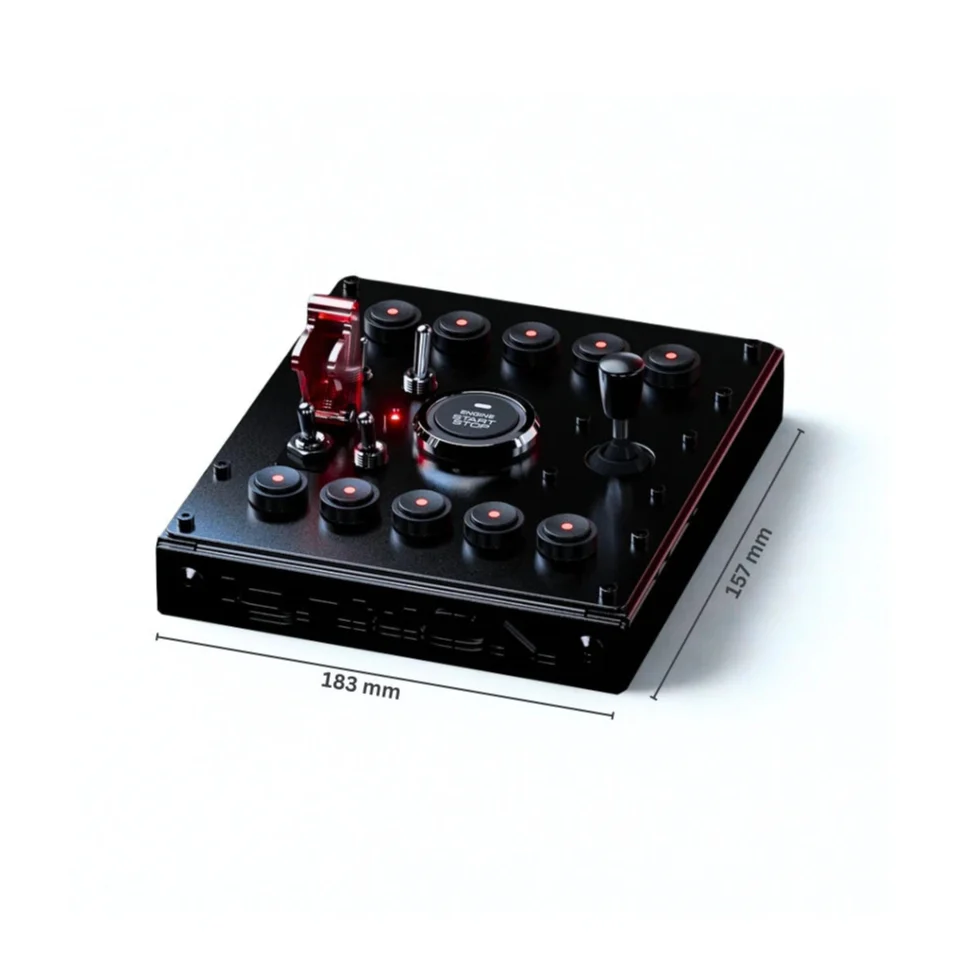

• Enclosure dimensions: 157 x 183 x 28 mm
• Weight: 980g
• Connection: Internally connected (non detachable) 1,7m USB cable routed from the backside.

WHAT'S INCLUDED

• IgnitiON Controls Mini EX Button Box with internally connected (non detachable) 1,7m USB cable routed from the backside.
